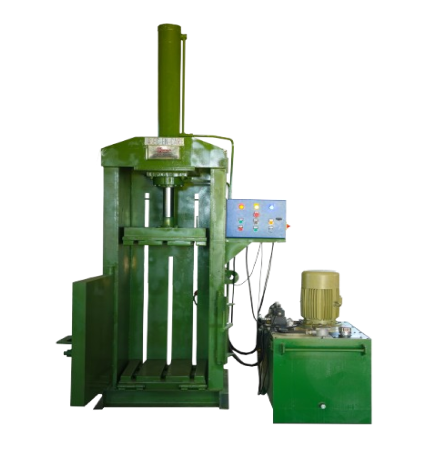

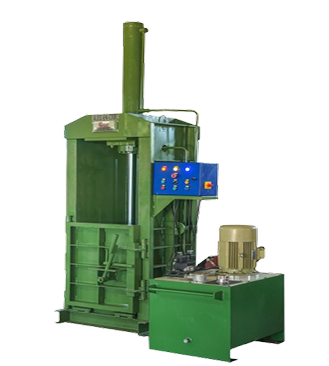

Baling Machine
| FEATURES | SPECIFICATION | DETAILS |
|---|---|---|
|
Pressing Capacity |
25 Ton |
High-capacity vertical baling press |
|
Max. Bundle Weight |
50-75 kg |
Varies depending on material (PET, HDPE, Paper, etc.) |
|
Applications |
PET, HDPE, LDPE, MLP, Paper, Bags, Slipper |
Designed for various materials |
|
Pressing Type |
Single Chamber Vertical |
Heavy-duty construction for enhanced durability |
|
Bale Dimensions |
600(L) × 600(B) × 750(H) mm |
Standard bale size for compact and efficient packing |
|
Chamber Dimensions |
600(L) × 600(B) × 1500(H)mm |
Spacious chamber for efficient material handling |
|
Cylinder Count |
1 Cylinder |
Vertical pressing cylinder |
|
Tie Slots |
3 Slots |
Strong, secure strapping of baled materials |
|
Production Capacity |
1000-1500 kg per 8-hour shift |
High throughput with auto |
|
Bale Ejection |
Wire Rope & Hooking to Cylinder |
Simple ejection system for ease of operation |
|
Main Cylinder Size |
Bore: 140mm, Rod:80mm, Stroke:1000mm |
Powerful hydraulic cylinder for effective pressing |
|
Material Loading |
Manual |
Front-opening for ease of loading |
|
Seal Types |
Teflon, Polyurethane, Nitrile Buna Rubber |
Durable and reliable seals for long-lasting operation |
|
Reservoir Capacity |
250 liters |
Large reservoir (without oil) for hydraulic fluid |
|
Electrical Motor |
10 HP, 3 Phase, 1440 RPM, Flange (Kirloskar/Siemens) |
Reliable motor with high performance |
|
Hydraulic Pump |
Speed make Gear Pump |
High-efficiency hydraulic pump |
|
Control Panel |
Variable Auto/Manual Option |
Versatile operation with flexible controls |
|
Structure |
Channels, M.S. Plate (8 mm & 4mm) |
Sturdy construction for enhanced durability |
|
Cycle Time per Bundle |
35 Minutes (Varies by manpower level) |
Quick cycle time for high efficiency |
|
Machine Weight |
Approx. 1.8 tonnes |
Heavy-duty machine for industrial use |
|
Machine Height |
3.5 meters |
Compact yet powerful design |
|
Overall Dimensions |
1.5 m (L) × 1.2 m (B) × 3.5 m (H) |
Space-efficient machine for small to medium-scale operations |
Key Highlights:
Heavy Construction: Designed to withstand continuous use and harsh conditions.
Multiple Material Support:Handles PET, HDPE, LDPE and more, making it versatile for various applications.
Energy-Efficient: The motor and pump systems are optimized for energy conservation without compromising performance.
Customizable Operation: Includes auto/manual operation modes for flexible workflow control.
Durability Focused: The use of high-grade seals and a robust hydraulic system ensures a long service life
